Brick Paved Streets and Alleys
Address: Throughout Chicago
Date: Primarily between 1880s and 1910s
OVERVIEW:
Joni Mitchell sang “you don’t know what you’ve got ‘til it’s gone”, and Chicago’s brick-paved streets and alleys are almost gone. In the era before asphalt and concrete, Chicago had hundreds of miles of brick paved streets and alleys. Most of Chicago’s brick paved streets and alleys have been destroyed and hauled off to landfills; but some remain buried beneath the asphalt and a few remain in use to- day.
The precise number of brick paved streets and alleys still in use today in Chicago is unknown as, to our knowledge, there has never been an accurate survey of this endangered resource. Important first steps toward preservation would be conducting a city-wide survey, imposing a moratorium on further damage or removal, and imposing a requirement that repair to brick paved streets and alleys be made with like materials.
The brick paved streets and alleys located within Designated Chicago Landmark Districts are theoretically protected as a significant and contributing feature of the Landmark District’s historic identity. However, construction from utility repairs (gas, electric, sewer) and homeowner projects (new garages and driveways) take a heavy toll. Contractors are not required to restore the brick paving they disturb, so brick paved historic alleys are often covered with a patchwork of asphalt and concrete repairs. Eventually, the condition becomes so degraded that the brick paved streets or alleys are resurfaced with asphalt, rather than have the pavers repaired and reset.
Though most of Chicago’s historic wood block streets and alleys have been asphalted over, a handful remain in use today. A few historic sandstone sidewalks remain but are frequently removed and discarded as part of sidewalk replacement programs. These historic elements also require attention and protection.
Many municipalities, Oak Park for instance, have taken proactive steps to protect their sand stone sidewalks because of their beauty, rarity and durability; qualities which are seen to enhance property values
HISTORY:
Originally, Chicago streets were packed dirt which turned to thick mud when wet and were a constant source of frustration for early Chicagoans. Dirt roads were initially paved with inexpensive wooden planks and later with wooden blocks; however, this practice was largely phased out after the Chicago Fire of 1871. Between the 1880s and the 1910s, brick pavers were widely used throughout Chicago’s highly traveled streets, as they were much stronger, highly-durable, fire-proof, and remained functional when wet or snow-covered. These new brick paved streets proved up to the formidable challenge of wear and tear from steel rimmed wagon wheels of pre-automobile street traffic.
Chicago’s street pavers were typically fired clay bricks made from the tough clay abundant under the prairie grass. Heavier solid granite pavers were also used, especially in commercial and industrial districts where the streets were built to withstand incredibly heavy loads. In some recent instances where the granite pavers have been removed and hauled off to landfills, the contractors left the granite pavers in place under the medians to serve as the foundations for new concrete curbs due to their incredible strength and durability.
BENEFITS:
Brick paved streets and alleys present immediate and long-term benefits to Chicago including: reduced long-term maintenance and replacement costs, reduced potholes and emergency pothole repair costs, reduced blight from asphalt street patches, re- duced traffic speeds resulting in significantly increased pedestrian and cyclist safety (with potential application in School Zones and designated Pedestrian Streets), ADA accessibility, environmental benefits, and visual benefits.
Economic Benefits: The approximate lifespan of asphalt is 10 to 15 years and concrete is 20 to 30 years. The approximate lifespan of brick roads is over 150 years. In fact, the over 2,000 year old cobblestones laid down for Rome’s Appian Way are still in use today.
While the initial per square foot installation cost is higher for brick pavers than asphalt or concrete, the lifespan of brick pavers can be 6 or 10 times as long. This makes a powerful argument for the long-term economic advantage of brick pavers.
Reduced Potholes: Unlike asphalt and concrete roads, brick paved roads are not prone to potholes, as gaps between brick pavers allow snow, ice and moisture to drain underground. An increase of brick paved roads would directly reduce the high cost as- sociated with emergency pothole repair, lessen a significant burden on the City of Chicago, and reduce the frustration of Chicagoans from flat tires caused by potholes.
Perhaps even more destructive than Chicago winters, the high frequency of underground utility work (gas, electric, water, and sewer) leaves recently paved asphalt streets with unsightly and pothole-prone patches. When concrete and asphalt fail, removal, hauling off, and full replacement of the road surface is required.
Eliminate Street Patches: Brick paved streets are highly durable and easily repairable. When construction crews complete their underground work, the gravel bedding layer can be re-compacted and the original pavers reset. It is often impossible to see where the pavers were disturbed. On occasion when a brick paver cracks, that individual paver can simply be replaced.
Safety: Another benefit of brick paved streets is increased safety from significant reduction of traffic speeds. According to one study, the average traffic speed dropped from 41 mph to 29 mph following a brick paver installation project. This represents a 30% decrease in speed, but more significantly the risk of death when a pedestrian is hit by a vehicle is approximately 400% high- er at 40 mph than at 30 mph.
In Chicago in 2017, 46 pedestrians and six cyclists were tragically killed after being struck by cars and trucks. The increased safe- ty offered by brick paved streets to Chicago’s children, pedestrians, and bicyclists would be significant.
Due to the proven increase in safety from slower traffic speeds, School Zones and designated Pedestrian Streets are an ideal fit for brick paving.
ADA Compatibility: Brick pavers are highly compatible with Americans with Disabilities Act (ADA) guidelines. There are hundreds of examples across the nation where brick paved streets, curb ramps, and adjacent sidewalks fully comply with ADA requirements. Furthermore, crosswalks across brick pavers streets do not need to be brick pavers, though there are many examples where brick pavers are intentionally used for crosswalks to visually distinguish the crosswalk for reasons of aesthetics and safety.
Environmental Benefits: Rain water seeps down between the pavers into the ground below. This serves to slow and filter the wa- ter, thus reducing polluted runoff that builds up on our streets and sewers, and which ultimately ends up in Lake Michigan and Chicago’s drinking water. Additionally, by reusing brick pavers the tonnage of petroleum-saturated failed asphalt and concrete hauled off to our landfills would be significantly reduced.
Visual Benefits: Brick and granite paving reflects a certain quality of construction and refinement within a neighborhood. Brick paved streets relate seamlessly to Chicago’s historic architecture and are perhaps more authentic in reflecting the time period in which many of these historic buildings were constructed. In Designated Chicago Landmark Districts, brick paved streets are a natural fit.
RECOMMENDATIONS:

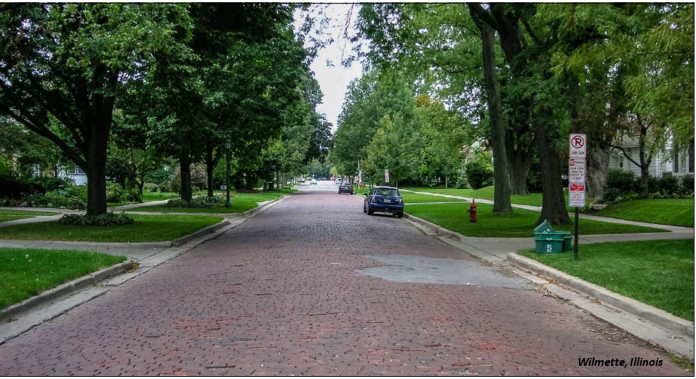

Nationally, internationally, and in the immediate Chicago-region, brick paved streets have consistently proven to be highly dura- ble and remarkably resilient. Large cities such as New York, Boston, Philadelphia and St. Louis maintain brick paved streets. There are a number of examples where Chicago suburbs have found high levels of success with brick paved streets. Wilmette restored seven blocks of roadway to brick pavers which were formerly covered by asphalt. Other communities such as Forest Park and Downers Grove have taken measures to restore their existing brick streets.
Preservation Chicago applauds the City of Chicago and the Chicago Department of Transportation (CDOT) for their preservation and restoration of granite paved streets in the Fulton Randolph Market District along Fulton Street.
Preservation Chicago recommends that the City of Chicago and CDOT recognize the value of brick paved streets and alleys for reasons of improved economics, safety, aesthetics, and sustainability. Necessary next steps should include:
- An accurate survey of brick and granite paved streets and
- A City Council moratorium preventing further damage or removal of existing brick paved streets and
- A requirement that repairs to brick and granite paved streets and alleys be made with in-kind
- Enforcement to ensure that utility repair crews and private contractors repair the brick paving they
- Brick paved streets should be considered for School Zones, Pedestrian Streets, & Chicago Landmark
